Second-order filter for passive audio crossovers.
High-pass filter with slope of 12 dB per octave.

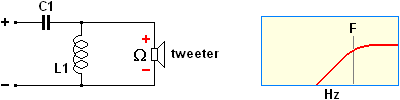

Scheme of an audio crossovers, high pass 12 dB per octave.

It calculates components values of an high pass filter for a passive audio crossovers.
Useful for two-way (or more) speakers (loudspeakers) or separated supertweeter, high pass filter is the way which supply the transducer for the reproduction of high frequencies called high or treble (tweeter or supertweeter).

Data input

F - Cutoff frequency:

Hz (mm)

Nominal impedance of the transducer:

Ohm

Wait calculate.
Results
Capacitor value C1 µF
Inductor value L1 mH

It sees also : Common information for components of a cross-over.
